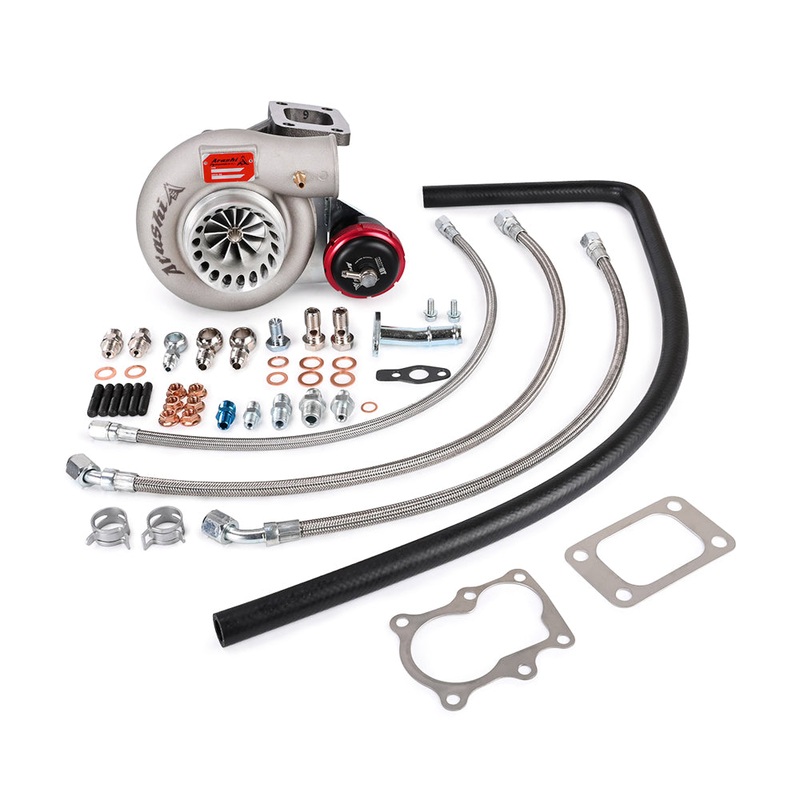

Arashi Billet Turbo TD05H-BIG16G-6cm2 6 Bolt TD42 PatrolLowMount

Brand New and Complete CHRAs balanced by VSR Core-Balancing Machine from Turbo Technics.

Application

– Nissan TD42 Patrol with low mount exhaust manifold
– Turbine housing can bolt up to fit factory exhaust manifold and dump pipe.
– Compressor housing inlet pipe needs to be modified to fit this 3.15 Cover

Arashi Item No.

NI-085648-03

Replacement For.

–

Turbine Wheel

TD05H

Turbine Diameter

49.2/55.8 mm (9 Blades)We also offer 12 blades. Please let us know if you need to change

Turbine Housing

6cm^2 / 0.41 A/R / 6 Bolt

Compressor Housing

Inlet Anti-surge 3.15″ / 80mm
Outlet 2″ / 50.8mm

Compressor Wheel

BIG16G (Billet)

Compressor Diameter

48.3 / 68 mm (GTX 11 Blades) We also offer6+6 and 7+7 Blades. Please let us know if you need to change.

Compressor CFM

–

Cooling

Water & Oil Cooled

Bearing

Arashi Racing 360 degrees UPGRADE Journal Bearing

Package Included

Gaskets and Install Kit

Flange

T3

Actuator

1.1 bar spring pre-installed on adjustable actuator.(18 ways for application)
