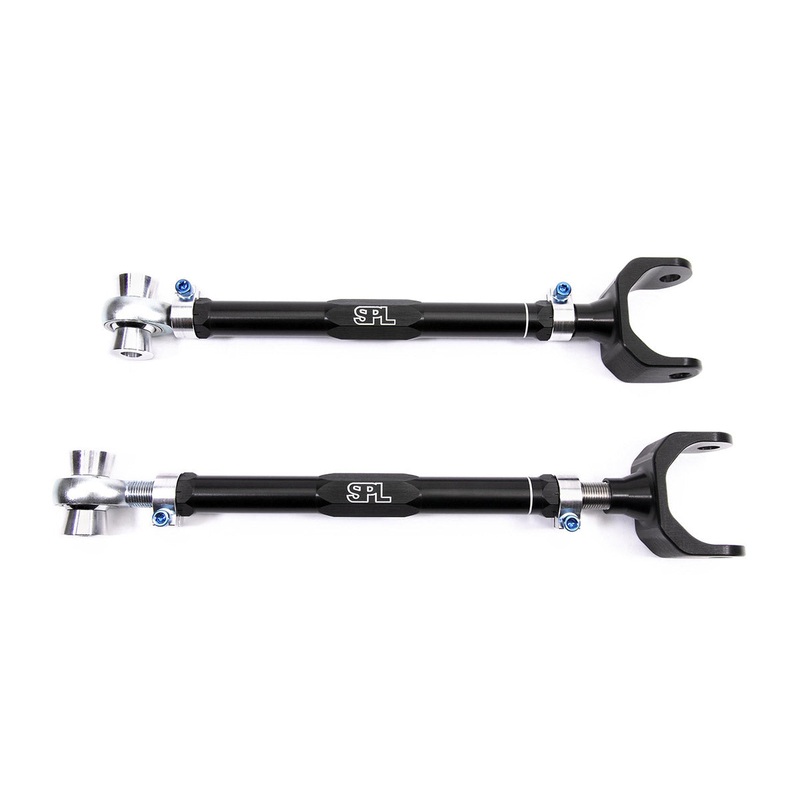

SPL Parts Rear Toe Arms (RTAEL) for the 2016-2024 Chevrolet Camaro (A1XX) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength.

The stock eccentric bolts provided by Nissan for small camber/toe adjustments tend to slip under high cornering loads, causing changes to the rear alignment. Our SPL Parts Eccentric Lockout (EL) Kit eliminate the stock eccentric bolts to keep your rear alignment where you set it. Our lockout plates are CNC machined from 6061-T6 Billet Aluminum and supplied with Zinc plated grade 10.9 hardware for absolutely zero-slip.FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65? to 325?F, offering robust reliability.Made in the USA.

Standard Features

• Lightweight Aluminum, Titanium, and Chromoly construction
• Powder coated black to protect against corrosion
• Electroless Nickel-plated 4130 Chromoly Double Adjuster for quick adjustment
• TIG welded
• Teflon lined FK Rod Ends

Installation Instructions

SPL Rear Traction Arms

Specifications

Vehicle Fitment

• 2016 Chevrolet Camaro (A1XX)
• 2017 Chevrolet Camaro (A1XX)
• 2018 Chevrolet Camaro (A1XX)
• 2019 Chevrolet Camaro (A1XX)
• 2020 Chevrolet Camaro (A1XX)
• 2021 Chevrolet Camaro (A1XX)
• 2022 Chevrolet Camaro (A1XX)
• 2023 Chevrolet Camaro (A1XX)
• 2024 Chevrolet Camaro (A1XX)
