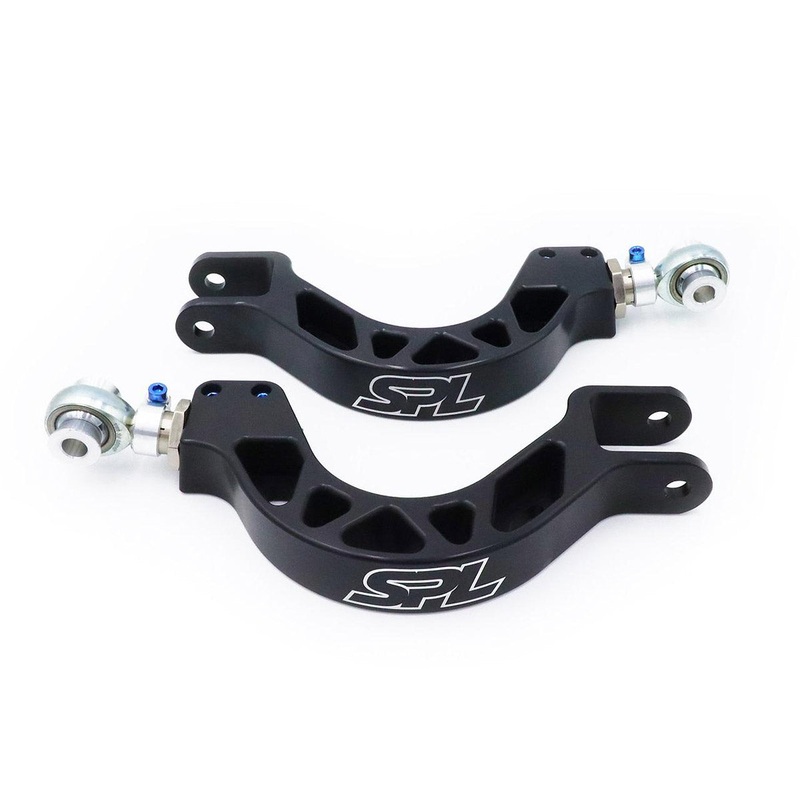

Our SPL TITANIUM Series Rear Upper Arms (RUA) for the 1989-1994 Nissan 240SX (S13) allow for an increased range of rear camber adjustment, necessary for lowered cars and performance alignments. This provides more stability and predictability to the rear suspension for tighter handling.

Using FEA (Finite Element Analysis) our CNC milled 6061-T6 Billet Aluminum arms are designed to exceed factory strength and durability. SPL Parts exclusive Double Adjuster is comprised of electroless nickel plated 4130 Chromoly along with 6061-T6 Aluminum rotating clamps to reduce weight and prohibit corrosion, while offering quick and easy adjustment. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms, without compromising strength.

FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65 to 325F, offering robust reliability.

Made in the USA.

Standard Features

• Lightweight Aluminum and Titanium construction
• Electroless nickel plated 4130 Chromoly Double Adjuster for quick adjustment
• Computer Aided Design with the aid of Finite Element Analysis
• Blue Anodized Titanium socket head cap screws
• Low friction 3-piece Teflon lined FK Rod Ends
• Black Anodized for a durable finish

Installation Instructions

SPL Rear Upper Arms

Specifications

Vehicle Fitment

• 1989 Nissan 240SX (S13)
• 1990 Nissan 240SX (S13)
• 1991 Nissan 240SX (S13)
• 1992 Nissan 240SX (S13)
• 1993 Nissan 240SX (S13)
• 1994 Nissan 240SX (S13)
