Rear Driveshaft Flange & Universal Joint at Differential | 1350 Series

Part # FL-TUNDRA1350-KIT

Vehicle Fitment:
2007 – 2021 Toyota Tundra

Vehicle Placement: Rear Driveshaft at Differential / 3rd Member

Features & Benefits

• Bolt-in replacement
• Reinforced in weak areas found in oem piece

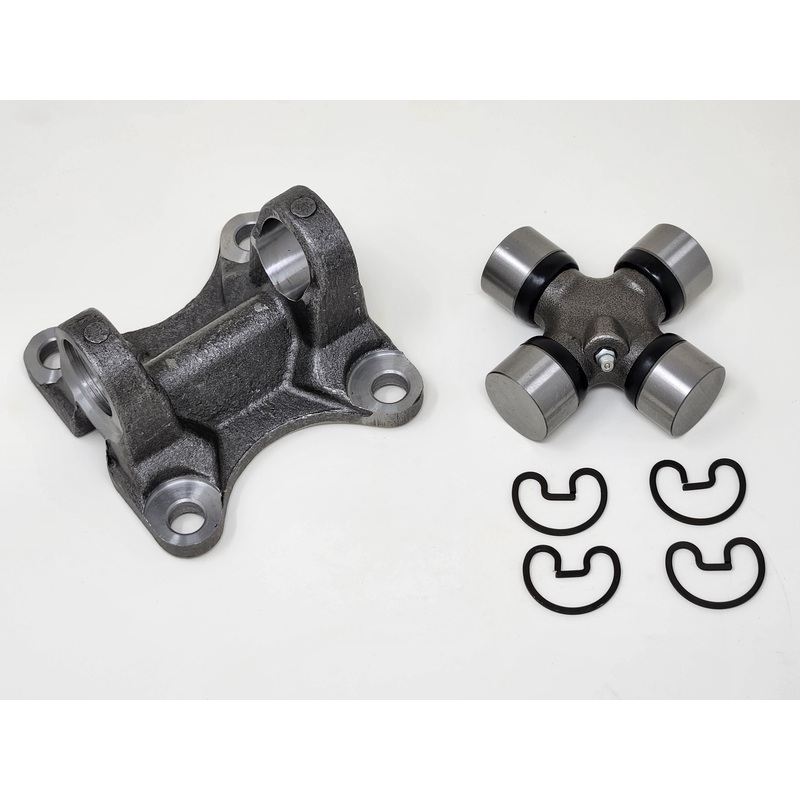

Contents Included:
(1) Driveshaft Flange
(1) 1350 U-Joint

Description
U-Joint Style (Inside or Outside snap ring)Outside Snap Ring
Distance between retaining rings:3.625″ / 3-5/8″ / 92mm
Cap Outside Diameter:1.1875″ / 1-3/16″ / 30mm
U-Joint Series:1350 (1.1875″ x 3.625″)
Bolt Holes:4
Outside Diameter Dimension A: 5.82 in. or 148 mm
Male Pilot Diameter Dimension B:1.811 in. or 46 mm
Flange Face to U-Joint Centerline Dimension H: 1.875 in. or 47.6 mm
Bolt Hole Centers Dimension X:3.425 in. or 87 mm
Bolt Hole Centers Dimension Y:3.425 in. or 87 mm
Bolt Circle Dimension Z: 4.872 in. or 124 mm

Cross Reference Part #’s: YOKT5004010 / 5004010 / 3502-188

Uses 5-1350X or 5-178X Universal joint
