Mishimoto Black Top Mount Intercooler w/ Black Hoses Subaru WRX 2002-2007 / STI 2004-2007

A top-mount intercooler upgrade is a great way to equip your flat-four with a cool charge of air! A cool, dense charge of air can allow for more aggressive tuning and increased power. The Mishimoto Subaru WRX and STI TMIC Kit provide a unique option for upgrading your charge air system. This top-mount intercooler kit utilizes a single entry inlet compared to the stock Y-pipe setup.

This unique tank design provides maximum airflow and superior air dispersion through the core, a process that results in optimal AIT reduction. This top-mount intercooler uses a high-efficiency bar-and-plate core, which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto top-mount intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation.

This top-mount intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 2022 psi of boost, this intercooler provided a 14 hp increase and a 30F drop in AITs compared to the stock STI TMIC. For more testing details, check out the engineering report! Thanks to a precision-engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This top-mount intercooler kit is available with either a Stealth Black or Sleek Silver cooler and like all of our WRX performance parts, includes the Mishimoto Lifetime Warranty.

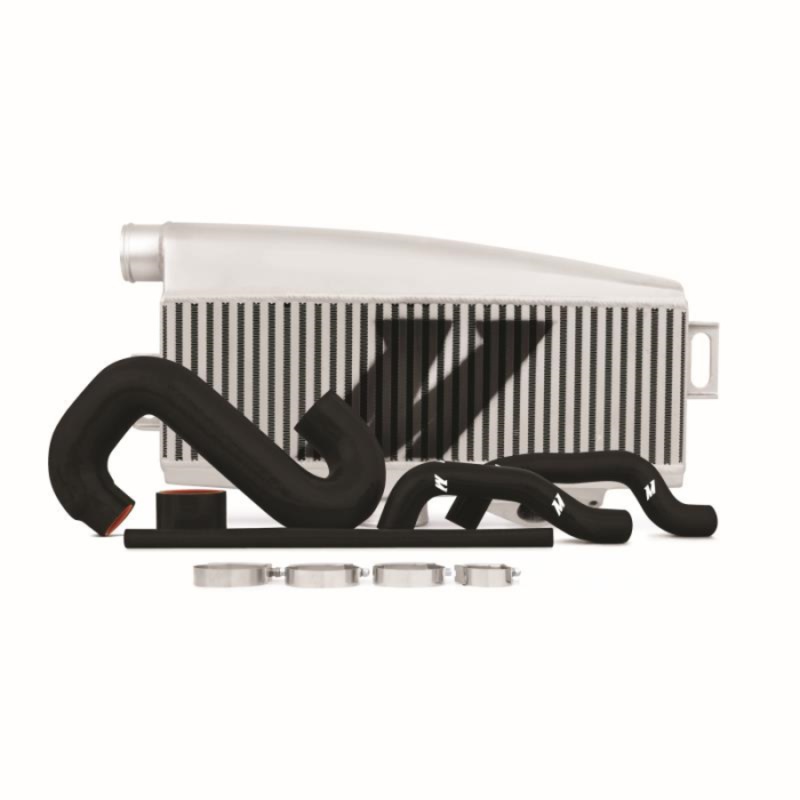

(1) Bar-and-Plate Intercooler
(5) Silicone Hoses and Couplers
(1) High-Temp Silicone S hose
(2) 3″ T-bolt Clamps
(1) 2.75″ T-bolt Clamp
(1) 2.25″ T-bolt Clamp
(1) Bypass Valve Gasket
(1) Black Nylon Hose Fitting, 3/4″ I.D.
(1) Black Nylon Tee Hose Fitting, 3/4″ I.D.
(1) WRX specific BPV hose
(1) STI specific BPV hose
(1) Intercooler to throttle body coupler
(1) PCV hose

Note:

This kit is rated for approximately 350 whp, or 25 psi of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles.
