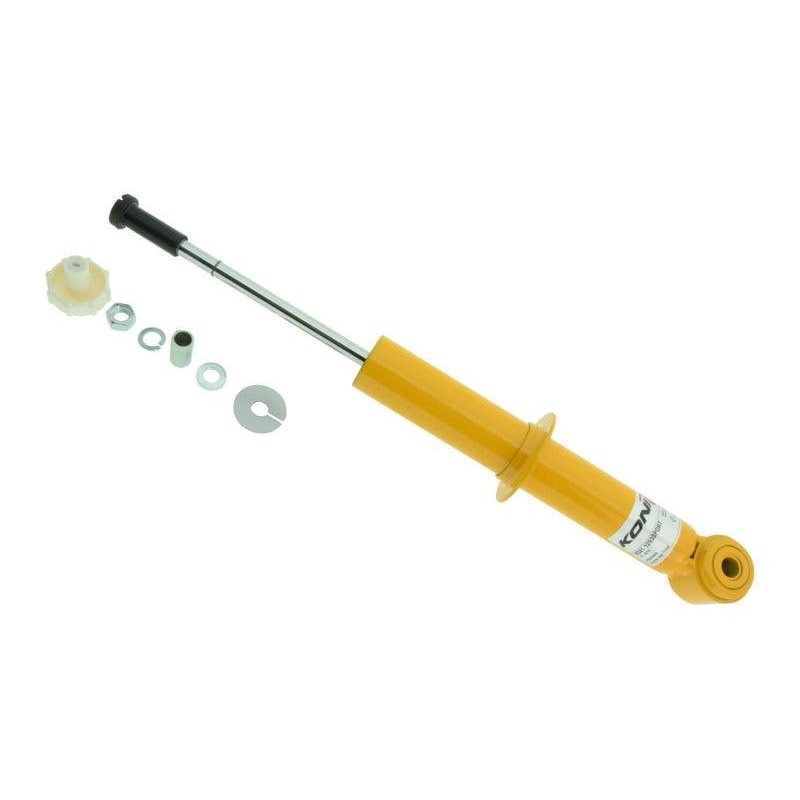

Sport Series Shock – Rear

KONI Sport Series, yellow painted externally rebound adjustable twin-tube low pressure gas charged shock absorber.

KONIs Sport shocks are designed for drivers looking for a sporty driving experience. These products focus on exceptional road-holding combined with an acceptable level of comfort. KONI Sport characteristics include responsive steering, reduced body-roll and limited body movements. Many Sport shocks are externally adjustable shock absorbers, making fine tuning even easier. KONI Sport ‘Yellow’ shocks offer the same exceptional road-holding as the Classic ‘Red’ shocks, but are especially designed for cars that are fitted with lowering springs which are shorter than the original springs.

Features:

• Externally adjustable
• Capability of fine tuning
• Rebound adjustable on-the-vehicle
• Street ride quality and corner carving handling control
• Tailor made and specifically engineered for each application
• Excellent choice for multi-use cars (street, track, etc.)
• Best KONI shock for all performance lowering springs

Click here for installation instructions.

What ARE Twin-Tube Shocks?

Twin-tube design shock absorbers, sometimes referred to as hydraulic or gas-hydraulic shock absorbers, have two tubes one for the piston to work in and one known as a reservoir tube for the excess oil to move in and out of. As the piston rod moves in and out of the shock the oil moves through valves between the two tubes ensuring controlled damping occurs to control the suspension of the vehicle. When the piston rod is pushed in, oil flows without resistance from below the piston through the orifices and the non-return valve to the volume above the piston. Simultaneously, a quantity of oil is displaced and forced to flow through the bottom valve into the reservoir tube. The resistance, encountered by the oil on passing through the bottom valve, generates the bump damping. When the piston rod is pulled out, the oil above the piston is pressurized and forced to flow through the piston. The resistance, encountered by the oil on passing through the piston, generates the rebound damping.

External Adjustment

KONI developed and manufactured the first adjustable telescopic shock absorbers and continue to innovate adjustment technology in each product. KONI External Adjustment is used on the Twin-tube design shock absorbers. This type of adjustment can be made with the shock on the vehicle and in any height of motion. Almost all KONI externally adjustable dampers are quickly and easily adjusted by placing the KONI adjuster knob on the adjuster tab that sticks out of the top mounting threading.

Fitment
