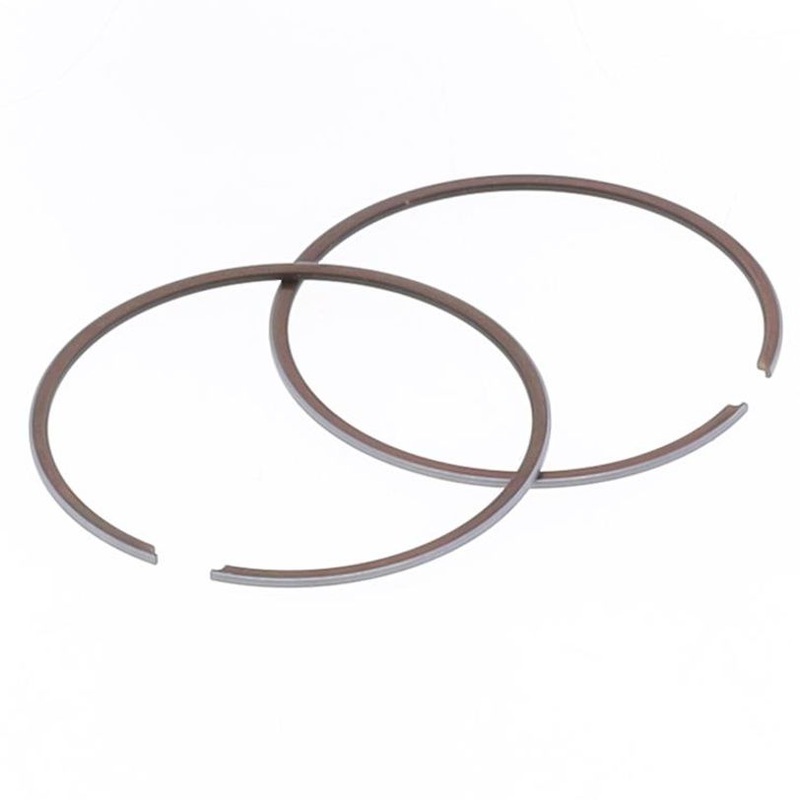

JE Pistons J100H8-4610-5 Piston Ring Set 4.610 in. Bore 0.0640 in. Top / 0.0640 in. 2nd / 0.188 in. Oil 8 Cyl.
JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.
Bore Diameter |
117.09|4.610 MM
|
Ring Type |
3 Ring
|
File Fit |
Yes
|
Top Ring Axial Height |
1/16 IN
|
Top Ring Radial Width |
0.212 IN
|
Top Compression Ring Thickness |
0.0640 IN
|
Top Ring Facing Material |
Plasma Moly
|
Top Ring Material |
Ductile Iron
|
Top Ring Shape |
Barrel Face, D-wall, Torsional
|
Second Ring Axial Height |
1/16 IN
|
Second Ring Radial Width |
0.212 IN
|
Second Compression Ring Thickness |
0.0640 IN
|
Second Ring Facing Material |
Phosphate
|
Second Ring Shape |
Taper Face, D-wall, Reverse Torsional
|
Oil Ring Axial Height |
3/16 IN
|
Oil Ring Radial Width |
0.190 IN
|
Oil Ring Thickness |
0.188 IN
|
Third Ring Facing Material |
Carbon Steel
|
Third Ring Material |
Carbon Steel
|
Third Ring Shape |
SS50U Style
|
Ring Set Thickness |
0.0640 in. Top x 0.0640 in. 2nd x 0.188 in. Oil
|
